GJ-DB1617
Automatic Leather Stacker
- Standard Working Width: 3400 mm/3200 mm/3000 mm
- Receiving End Height: 500–1600 mm
- Max. Stacking Height: 1800 mm

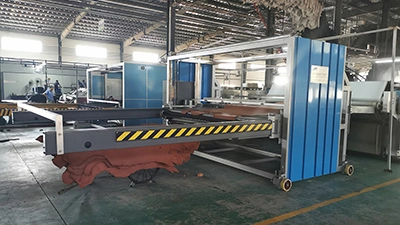

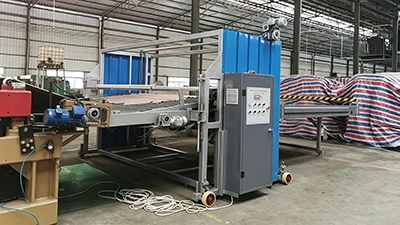

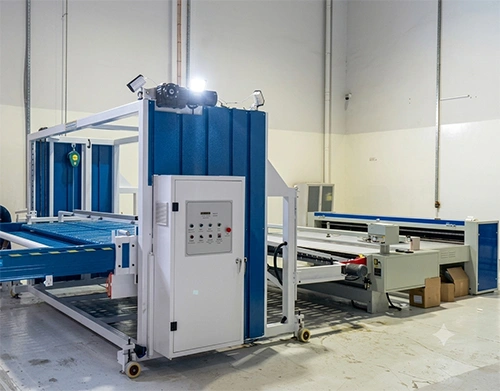

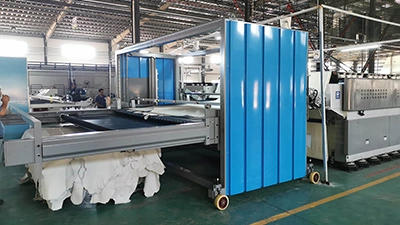

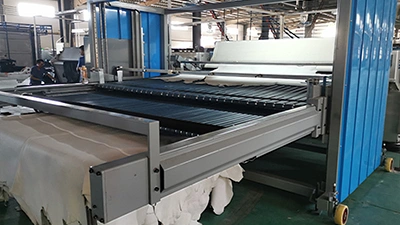

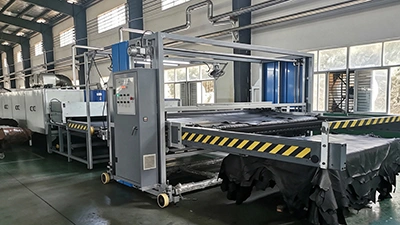

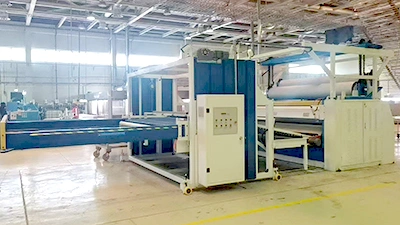

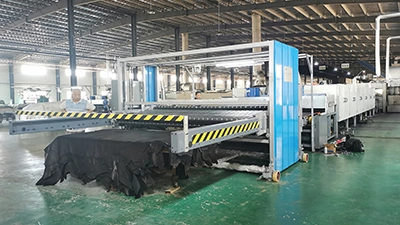

The GJ-DB1617 automatic leather stacker employs a computer control system to do automatic, continuous stacking operation in leather spraying, staking, buffing, padding, and polishing lines. It is compact and space-saving, runs quickly and reliably, and supports flat, face-to-face/back-to-back, and trestle (saddle) stacking. Customers can choose between two types, long-arm and short-arm, based on floor area and use.
Long-arm leather stacking machine (overall length 5,800mm):

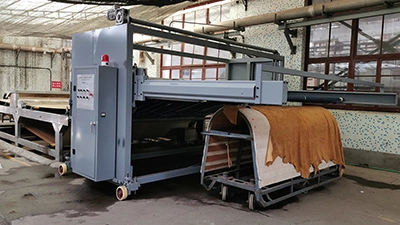

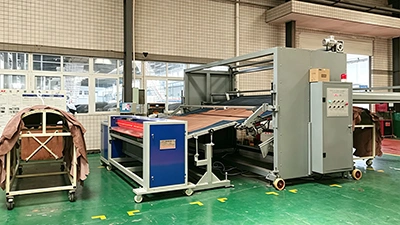

stacks on trestles and can also lay whole hides flat.
Short-arm leather stacking machine (overall length 4,800 mm):
handles trestle stacking and split-hide flat laying, but not whole-hide flat laying.
Key Advantages
- Single-chip computer control with a 2-plate mode: compact and space-saving, with a total length (including the stacking flatbed cart) of just 5.5–6m.
- Highly intelligent: Fengmi's proprietary single-chip control offers strong anti-interference, fast operation, and a low fault rate.
- Low power consumption: servo control sharply reduces draw user data shows an average of just ~1.1kW per hour per machine.
- Multiple laying modes: flat, face-to-face/back-to-back, and trestle.
Technical Specifications
- Standard Working Width: 3400 mm/3200 mm/3000 mm
- Receiving End Height: 500–1600 mm
- Max. Stacking Height: 1800 mm
- Stacking Elevation Control: Manual + Automatic
- Control System: CNC Servo + Microcomputer + VFD (Variable Frequency Drive)
- Mobility: Caster wheels
- Stacking Modes: Trestle stacking, Full-hide flat stacking, Half-hide flat stacking
- Stacking Functions: Face-up to face-up, Face-up to face-down, Alternating face/back stacking, etc.
- Computing Unit: Standard industrial single-board computer
- Total Power: Approx. 2.85 kW (Actual energy consumption: Approx. 1.1 kWh)
- Height: 2300 mm
- Width: Working width + 700 mm
- Length: Short arm model 5500 mm / Long arm model 6000 mm
