FMPGHGX

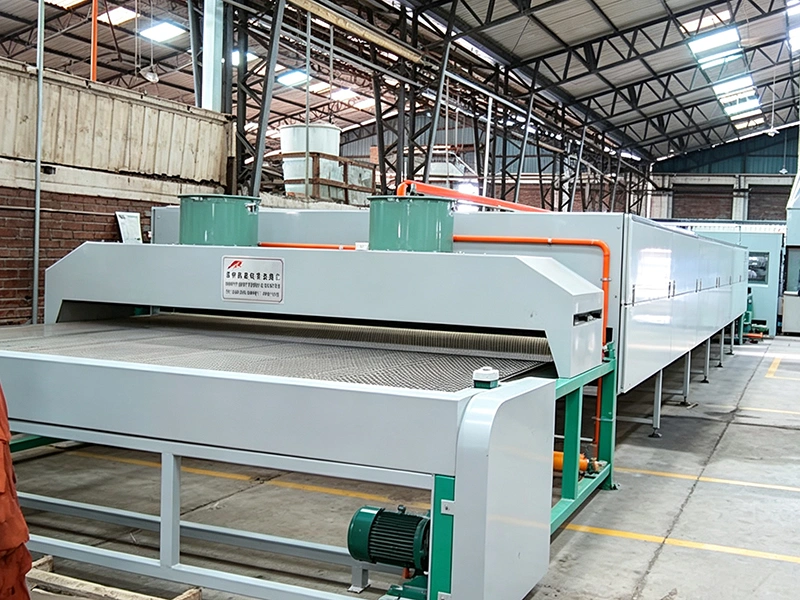

Drying Tunnel for Leather Finishing
- Effective Width: 180 - 320 cm (Customizable upon request)
- Drying Tunnel Length: 2 m / section, Standard configuration: 5 sections (10 m)
- Infeed Conveyor Length: 100–150 cm
- Outfeed Conveyor Length: 200–250 cm
The FMPGHGX drying tunnel is a through-feed drying system designed to join with a tannery's roller coating line, ensuring that leather is dried rapidly following the coating process. It has a high-temperature circulating hot-air structure that ensures stable, thermally efficient operation, and it supports steam, thermal oil, and electric heating. An anti-humidity reverse-air system and a high-seal insulated body enhance the overall drying efficacy and minimize heat loss. It is effortless to integrate with a variety of roller coating machines to ensure consistent, uninterrupted production, as it features an adjustable infeed/outfeed connection and multiple conveyor options.
Designed for seamless integration with roller-coating lines and specialized leather drying processes in tanneries
- Choice of steam, thermal oil, or electric heating.
- Aluminum-finned heaters in a high-temperature hood with a long-shaft circulation motor, keeping the motor clear of heat-related faults for high thermal efficiency.
- High-grade sealed-compression insulation panels improve heat retention, raising thermal efficiency by over 10%.
- Dehumidification and cooling fans ensure heat is not over-extracted.
- VFD stepless speed control with an independent control cabinet.
- Monofilament or PTFE conveyor options.
- A distinctive height-adjustable hide-transfer connector.
-

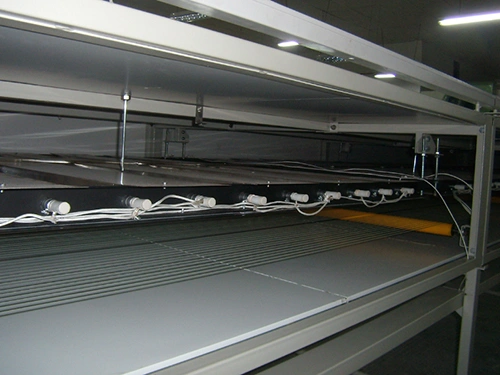

Electric Heater Interior
-

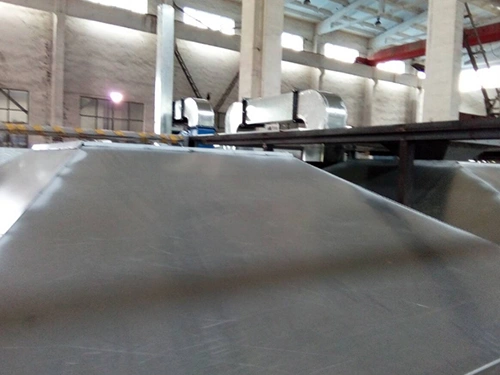

Air Hood
-

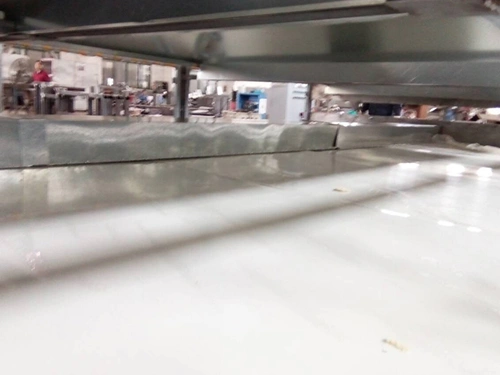

Drying Tunnel Interior
-

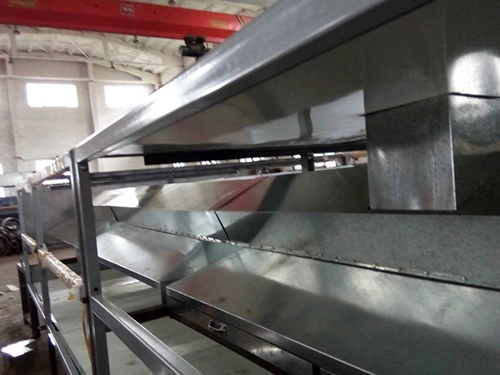

Air Hood Interior
-

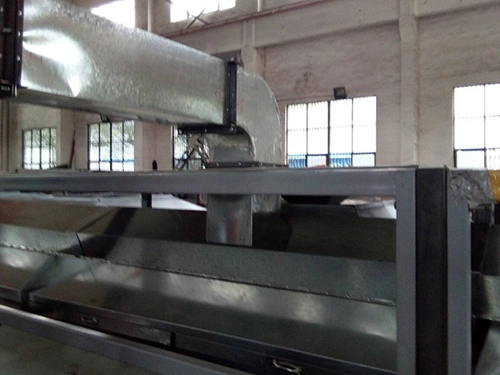

Hot Air Duct
-

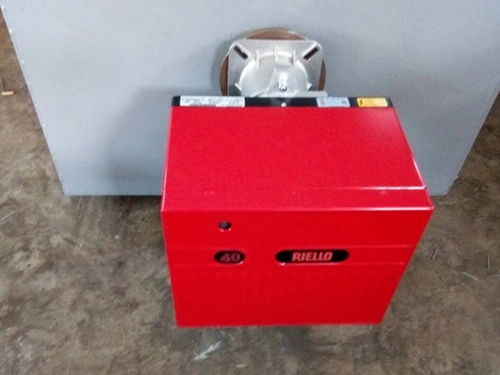

Natural Gas Burner
-

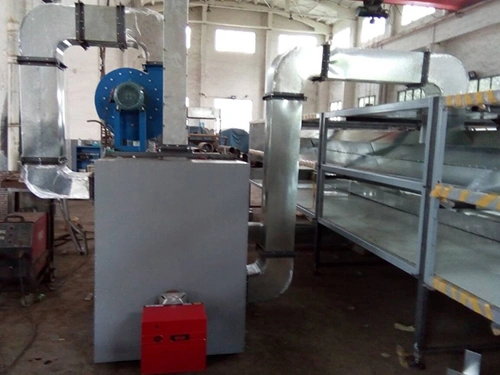

Natural Gas Combustion Furnace
-

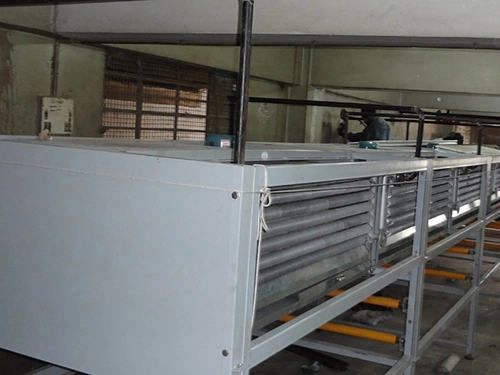

Steam-Heated Radiator
