Conveyor Belts with V-Guides, Cleats and Sidewalls

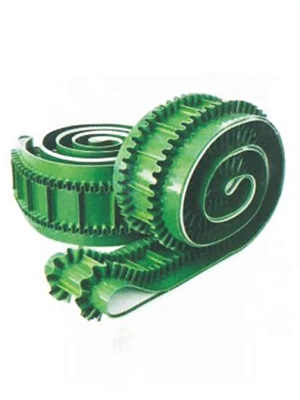

    • Conveyor Belts with V-Guides, Cleats and Sidewalls

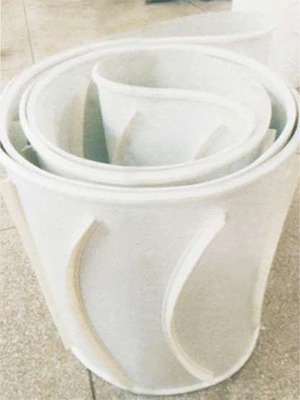

    • Conveyor Belts with V-Guides, Cleats and Sidewalls

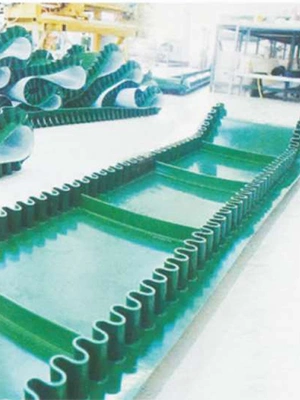

    • Conveyor Belts with V-Guides, Cleats and Sidewalls

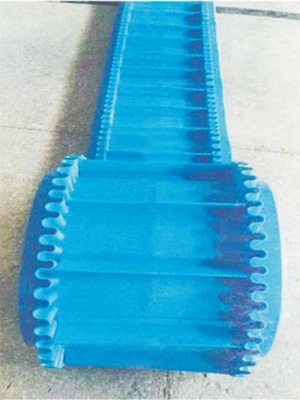

    • Conveyor Belts with V-Guides, Cleats and Sidewalls
Note:
  • Skirt height (h) can be customized to customer requirements.
  • Skirt width (w) refers to the width across the top of the skirt. Machining tolerance for the dimensions listed in the table is +2mm.
See figure for guide bar shape Guide Bar Model Color/Material V-Guide Specifications (B×H) Minimum Pulley Diameter (mm)
Conveyor Belts with V-Guides, Cleats and Sidewalls DCG5×3/DCW5×3 Green/White PVC V-Guide 5×3 25
DCG6×4/DCW6×4 Green/White PVC V-Guide 6×4 30
DCG8×5/DCW8×5 Green/White PVC V-Guide 8×5 35
DCG10×6/DCW10×6 Green/White PVC V-Guide 10×6 40
DCG13×8/DCW13×8 Green/White PVC V-Guide 13×8 50
DCG17×11/DCW17×11 Green/White PVC V-Guide 17×11 60
DCG22×14/DCW22×14 Green/White PVC V-Guide 22×14 80
Conveyor Belts with V-Guides, Cleats and Sidewalls KDCG5×3/KDCW5×3 Green/White PVC V-Guide 5×3 Notched 20
KDCG6×4/KDCW6×4 Green/White PVC V-Guide 6×4 Notched 25
KDCG8×5/KDCW8×5 Green/White PVC V-Guide 8×5 Notched 30
KDCG10×6/KDCW10×6 Green/White PVC V-Guide 10×6 Notched 35
KDCG13×8/KDCW13×8 Green/White PVC V-Guide 13×8 Notched 40
KDCG17×11/KDCW17×11 Green/White PVC V-Guide 17×11 Notched 50
KDCG22×14/KDCW22×14 Green/White PVC V-Guide 22×14 Notched 70
Conveyor Belts with V-Guides, Cleats and Sidewalls DUU5×3/DUW5×3 Green/White PVC V-Guide 5×3 15
DUU6×4/DUW6×4 Blue/White PU V-Guide 6×4 20
DUU8×5/DUW8×5 Blue/White PU V-Guide 8×5 25
DUU10×6/DUW10×6 Blue/White PU V-Guide 10×6 30
DUU13×8/DUW13×8 Blue/White PU V-Guide 13×8 35
DUU17×11/DUW17×11 Blue/White PU V-Guide 17×11 50
Conveyor Belts with V-Guides, Cleats and Sidewalls LCG10/LCW10 Green/White PVC Angled Cleat 25×10 50
LCG20/LCW20 Green/White PVC Angled Cleat 25×20 60
LCG30/LCW30 Green/White PVC Angled Cleat 25×30 70
LCG40/LCW40 Green/White PVC Angled Cleat 25×40 80
LCG50/LCW50 Green/White PVC Angled Cleat 30×50 100
LCG60/LCW60 Green/White PVC Angled Cleat 30×60 100
Conveyor Belts with V-Guides, Cleats and Sidewalls TCG10/TCW10 Green/White PVC Angled Cleat 25×10 50
TCG20/TCW20 Green/White PVC Angled Cleat 25×20 60
TCG30/TCW30 Green/White PVC Angled Cleat 25×30 70
TCG40/TCW40 Green/White PVC Angled Cleat 24×40 80
TCG50/TCW50 Green/White PVC Angled Cleat 30×50 100
TCG60/TCW60 Green/White PVC Angled Cleat 30×60 100
TUU10/TUW10 Blue/White PU Cleat 25×10 40
TUU20/TUW20 Blue/White PU Cleat 25×20 50
TUU30/TUW30 Blue/White PU Cleat 25×30 60
TUU40/TUW40 Blue/White PU Cleat 25×40 70
TUU50/TUW50 Blue/White PU Cleat 25×50 80
