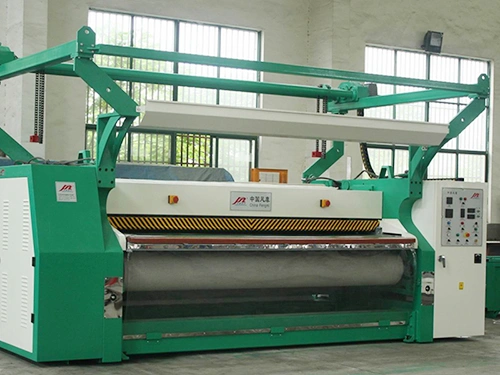

Leather Ironing and Embossing Machine
FMZYQ

Leather Ironing and Embossing Machine

  • Max. Working Pressure: 240 kg/cm²
  • Max. Working Temperature: 180 °C
  • Working Speed: 3/17 m/min
Request a Quote

The FMZYQ leather ironing and embossing machine is utilized in tanneries and synthetic leather manufacturing facilities for ironing, finishing, and quality improvement. An offset configuration of upper and lower rollers creates an extensive surface contact zone of approximately 180mm, yielding significantly improved outcomes. The pressure roller is built of a unique material that can withstand deformation and bending at up to 150kg/cm pressure, and a computer-controlled constant-temperature system ensures that the roller surface is uniformly heated. The pressure is continuously adjustable from 10 to 150kg/cm, and a clever leather-stretching mechanism ensures that even the thinnest hides remain flat and free of wrinkles during the ironing process.

Applications
  • Leather ironing
  • Leather litchi-grain embossing
Suitable For

Tanneries and synthetic-leather plants

Features
  • Ultra-high pressure: up to 240kg/cm², capable of pressing coarse patterns such as litchi grain; clear and full-bodied.
  • Interchangeable mirror finish roller for two functions in one machine.
  • Frame and shaft heads built from imported materials; high strength, able to bear ultra-high pressure without deformation.
  • Electric lifting frame that stores 3 spare rollers for easy changeover.
  • All key parts use imported materials; motor, bearings, heater, blankets, etc.
  • Precision intelligent leather-stretching device that extends wrinkled hides.
  • Computer-controlled even-heat distribution that keeps the roller surface temperature consistent.
  • Timed heating to pre-heat the machine and save startup time.
Technical Specifications
Effective Working Width 1600 mm 2100 mm 3000 mm 3200 mm
Max. Working Pressure 240 kg/cm²
Max. Working Temperature 180 °C
Working Speed 3/17 m/min
Embossing Roller Diameter 500 mm
Pressure Roller Diameter 700 mm
Overall Weight 11900 kg 10900 kg 12300 kg 12600 kg
Overall Dimensions (L×W×H) 4100×2200×2400 mm 4600×2200×2400 mm 5500×2200×2400 mm 5700×2200×2400 mm

Note: We offer customizable configurations to suit your local facility. Please contact us to confirm all technical specifications before ordering.

Machine details

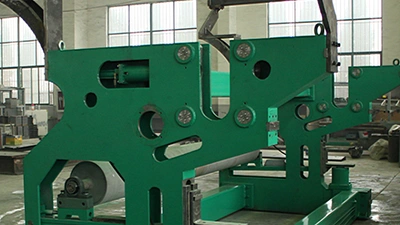

    • Leather Embossing Machine Frame

      Leather Embossing Machine Frame

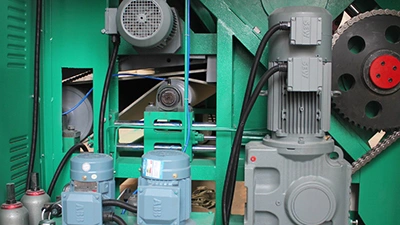

    • Leather Embossing Machine Interior

      Leather Embossing Machine Interior

    • Leather Embossing Effect

      Leather Embossing Effect

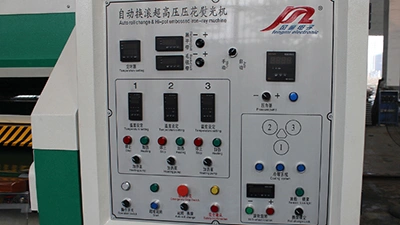

    • Control Panel

      Control Panel
