FMYGM

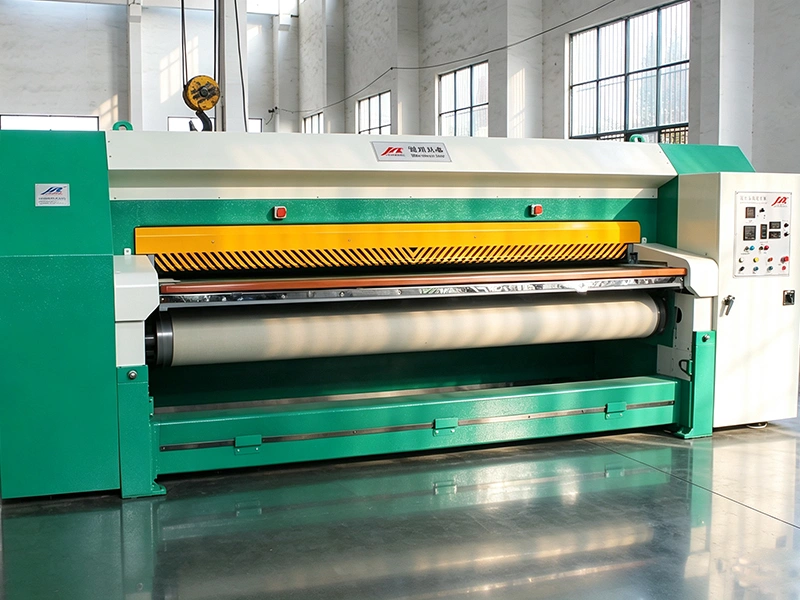

Leather Ironing Machine
- Working Pressure: 0–150 kg/cm²
- Total Power: 38 kW
- Max. Working Temperature: 180 °C
- Working Speed: 3/15 m/min
The FMYGM leather ironing machine is utilized in tanneries and synthetic leather facilities for the ironing, finishing, and quality improvement of leather surfaces. An offset configuration of upper and lower rollers creates an extensive surface-contact ironing zone of approximately 180mm, resulting in significantly improved gloss outcomes. The pressure roller is constructed from a specialized material that withstands deformation and bending at pressures of up to 150kg/cm, while a computer-controlled constant-temperature system maintains uniform heating of the roller surface. Pressure is continuously adjustable from 10 to 150 kg/cm, and an innovative leather-stretching mechanism ensures that even the thinnest hides remain flat and free of wrinkles during the ironing process. A swift pre-heat feature minimizes startup delay, facilitating continuous, high-quality surface finishing.
Leather ironing in tanneries and synthetic-leather plants
- Offset upper/lower roller mounting creates a 180mm ironing contact face for better gloss.
- Special-material lower pressure roller that resists deformation and bending under 150kg pressure.
- Computer-controlled even-heat distribution system that keeps the roller surface temperature consistent.
- Pressure fine-tuning from 10–150kg.
- Intelligent leather-stretching device that keeps even thin sheepskin wrinkle-free through the stretch.
- Timed heating to pre-heat the machine and save startup time.
| Effective Working Width | 1800 mm | 2500 mm | 3200 mm |
| Working Pressure | 0–150 kg/cm² | ||
| Total Power | 38 kW | ||
| Max. Working Temperature | 180 °C | ||
| Working Speed | 3/15 m/min | ||
| Embossing Roller Diameter | 500 mm | ||
| Pressure Roller Diameter | 400 mm | ||
| Overall Weight | 7200 kg | 8200 kg | 9800 kg |
| Overall Dimensions (L×W×H) | 3800×2200×2000 mm | 4500×2200×2000 mm | 5200×2200×2000 mm |
Note: We offer customizable configurations to suit your local facility. Please contact us to confirm all technical specifications before ordering.
-

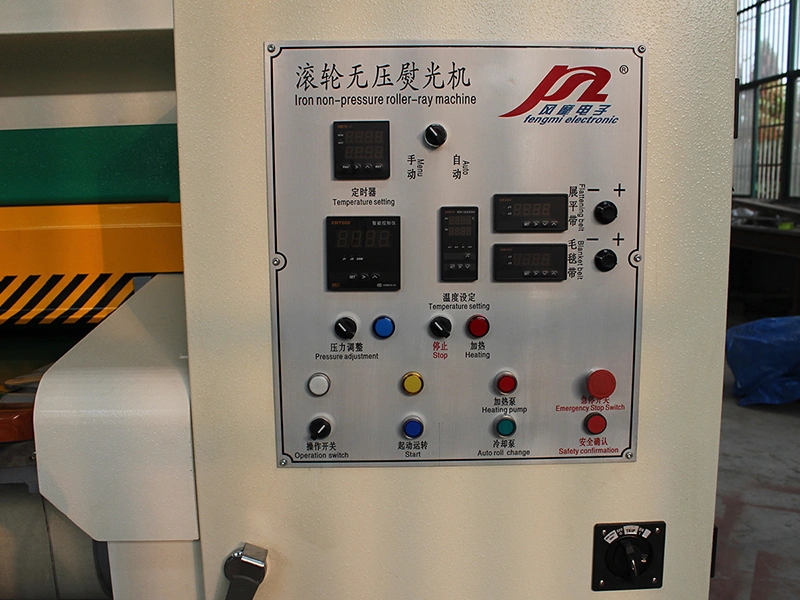

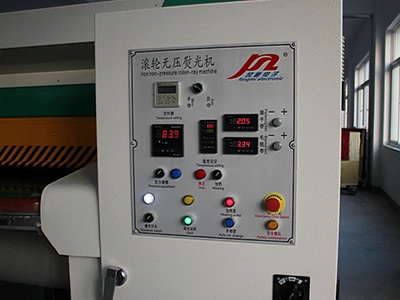

Control Panel
-

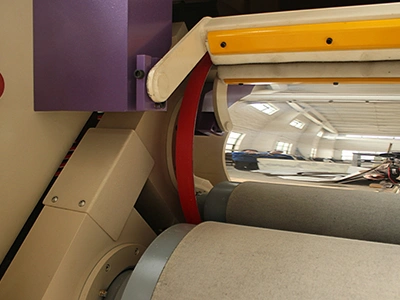

Mirror Finish Roller
-

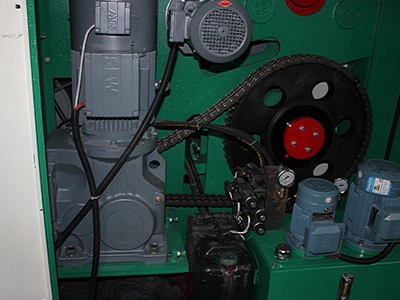

Reducer Unit
-

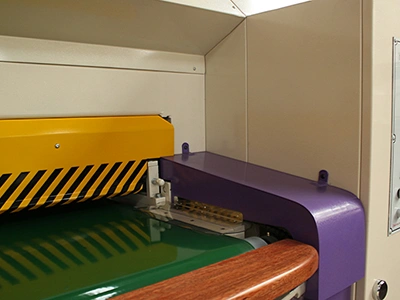

Operation Tabletop
-

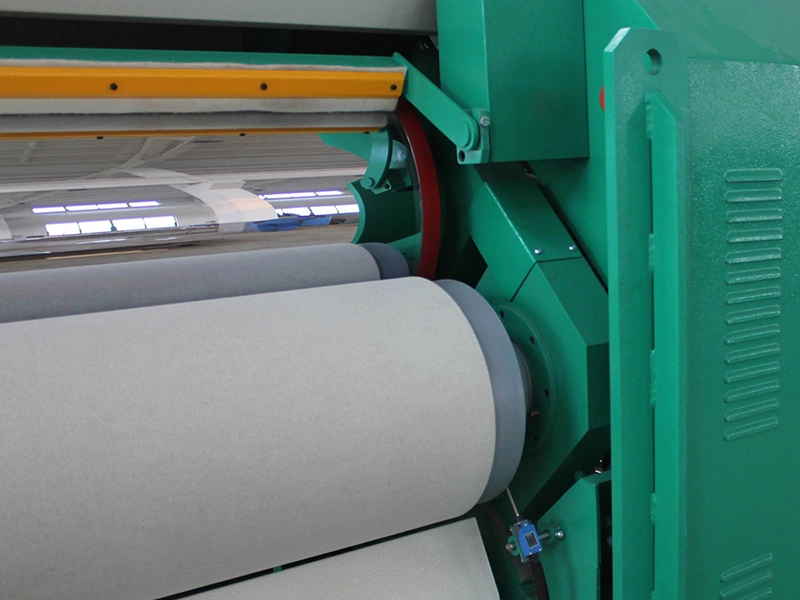

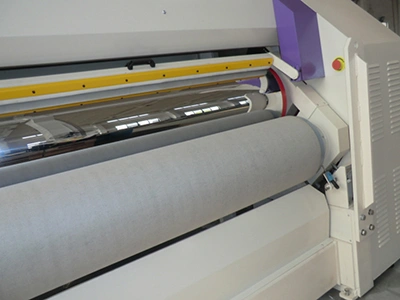

Ironing Felt
-

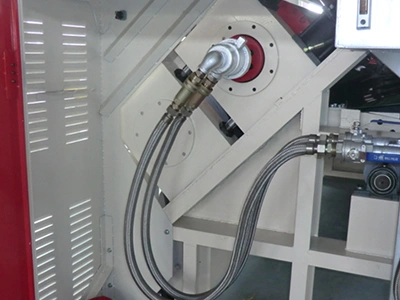

Oil Circuit
High-quality leather that has undergone embossing or ironing requires meticulous care; the inclusion of an automatic leather stacking machine effectively prevents crease damage caused by manual handling.
