FMPJJ
Leather Spray Finishing Machine

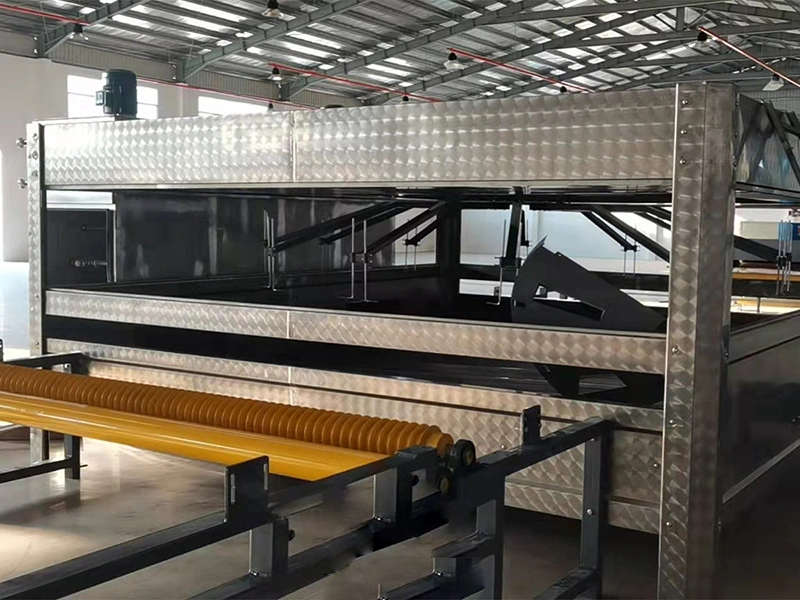

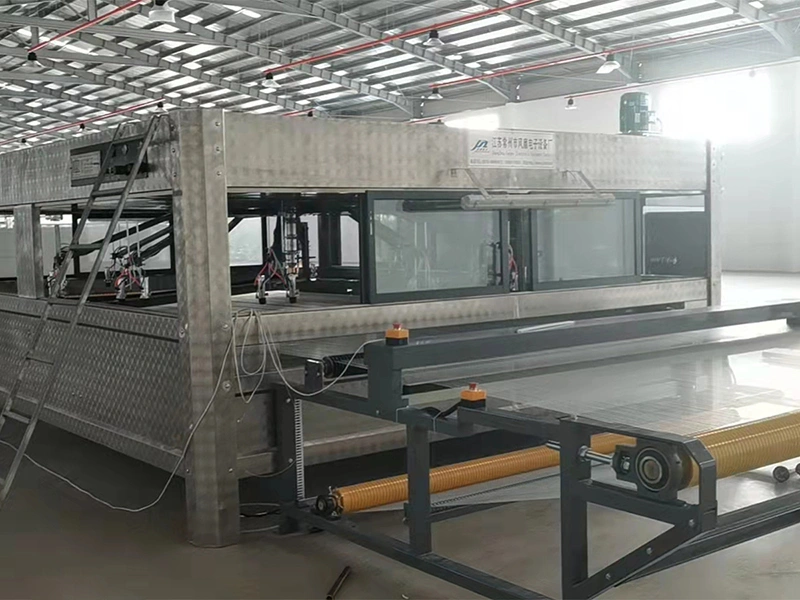

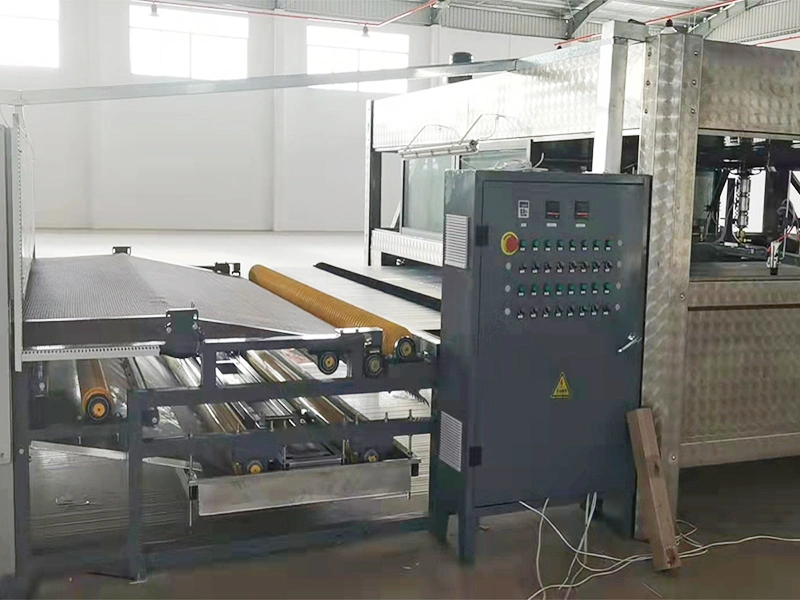

The FMPJJ leather spray finishing machine is a high-efficiency, intelligent spraying equipment for tanneries and synthetic-leather factories, ideal for colouring, effect spraying, and replacing traditional roller coating. Its high-density computer-tracked spraying method saves 10–20% or more on dye. The machine is made of stainless steel with a beautiful surface finish, and the spray system incorporates stainless coating plates as well as excellent dust extraction, filtration, and recovery, which ensures even spraying and a clean environment. We provide models for hides ranging in width from 1.2m to 3.4m, with rotary, reciprocating, and hybrid designs.
- Full stainless-steel drainage tray at the base of the spray chamber, continuously flushed by pump to keep the chamber interior clean.
- A purpose-built dust-extraction fan with 24,500–49,000m³/h of draw, for excellent dust capture inside the chamber.
- A well-engineered dust-treatment system: a water curtain at the air inlet, three-stage water filtration in the base tank, a large-access central fan for easy cleaning and maintenance, and a top return tank that keeps water in the air path without drawing it out, capturing leather dust efficiently into the water tank.
- Twin brush-type line-washing units (or scrubbing-board units), with a special transport method that keeps the hide free of slurry contamination.

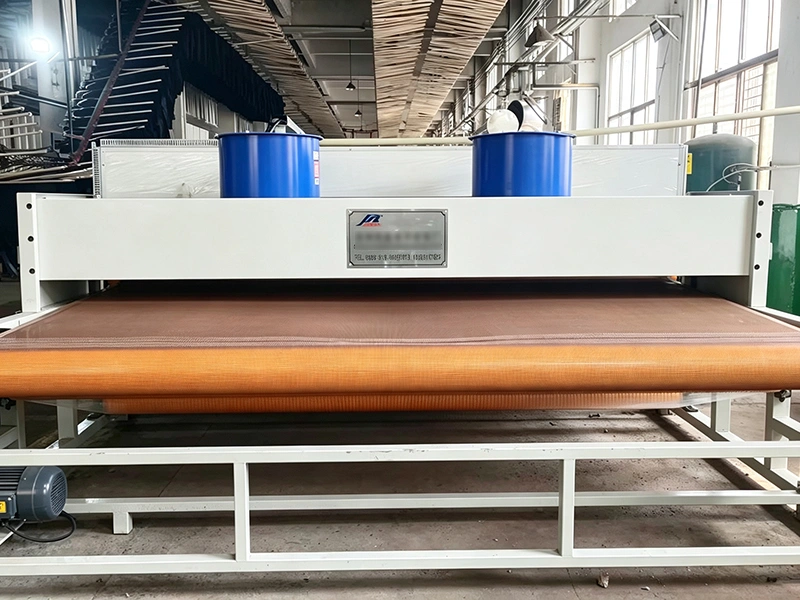

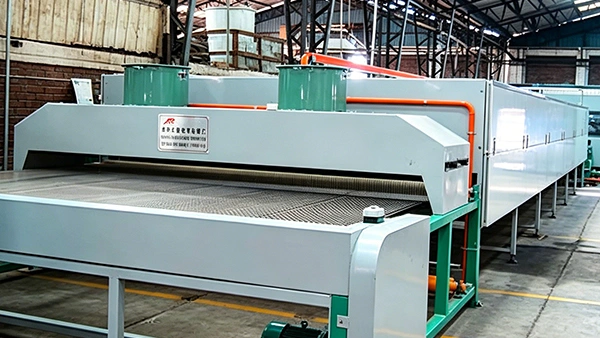

- Drying system available in steam, thermal oil, electric, or fuel-fired versions.
- Effective Working Width (cm): 120 / 160 / 180 / 220 / 240 / 260 / 280 / 300 / 320 / 340
- Overall Machine Length: 20 - 23 m (Standard drying system: 10 m / 4 sections)
- Conveyor Speed: VFD stepless speed regulation
- Rotary / Reciprocating Speed: Rotary: 0–30 rpm, Reciprocating: ≥ 40 strokes/min
- Total Motor Power: 17–22 kW (Excluding heating system)
- Infrared Startup Power: 30–80 kW (Depending on model specifications)
- Exhaust Fan Airflow: 33,000–66,000 m³/h
- Exhaust Fan Configuration: Single set for ≤ 280 cm, Dual sets standard for ≥ 300 cm
- Dehumidification Fan: 1 set (Standard)
- Cooling Fan: 1 set (Standard)
- Number of Spray Guns: 2 - 24 pcs (Customizable based on production requirements)
Note: We offer customizable configurations to suit your local facility. Please contact us to confirm all technical specifications before ordering.
- Spray guns: imported from Italy or Germany (optional)
- Slurry pumps: Italy or Taiwan (optional)
- Spray type: high-pressure, low-pressure, single- or dual-slurry path (optional)
- Slurry shaft: single-path, dual-path, or low-pressure multi-way (optional)
- Spray chamber: galvanized top, stainless steel elsewhere
- Conveyor: monofilament or PTFE (optional)
- Line washing: brush, scrubbing board, or scraper (optional)
- Heating: electric, steam, pellet furnace, natural gas, or thermal oil (optional)
- Widths: 1,400–3,400mm (to customer requirement)
