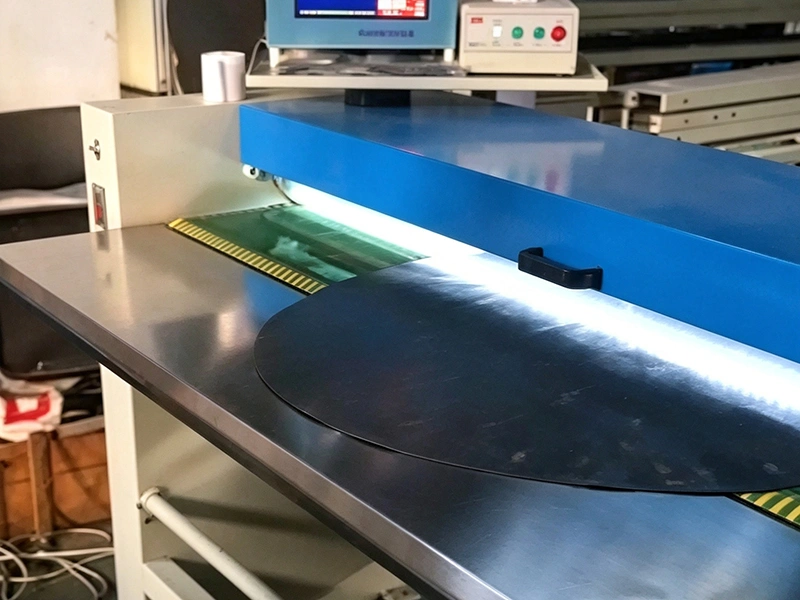

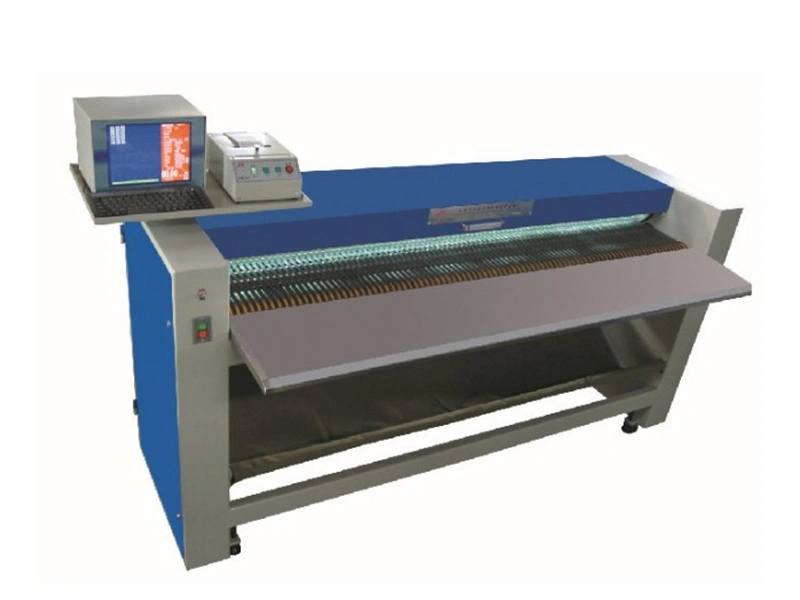

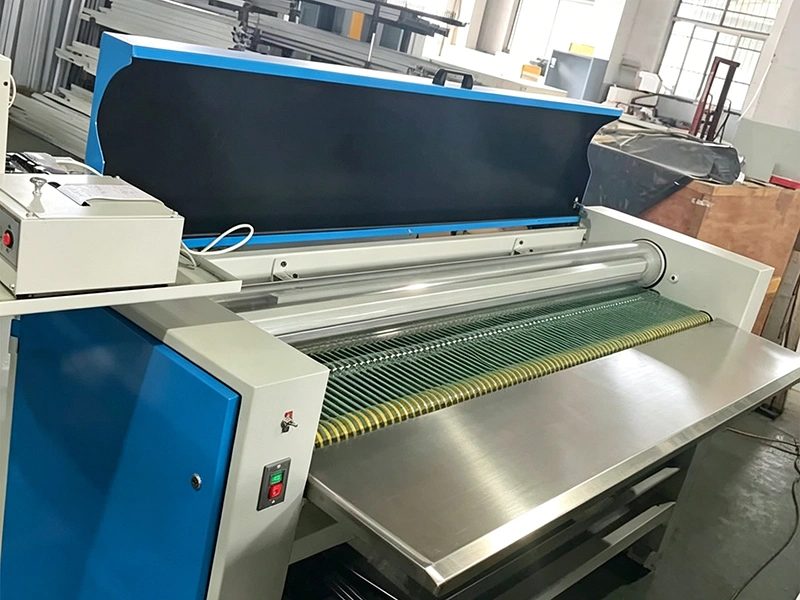

Compact Leather Measuring Machine
- Operating Speed: 20–27 m/min
- Motor Power: 0.37–0.55 kW / 380 V
- Measurement Accuracy: Cumulative error of 10 consecutive measurements ≤ ±1%
- Size Calibration: Continuous calibration supported
Vertical, compact leather measuring machine, shoe-factory measuring machine
GLGL series compact leather measuring machine is designed for consumers with limited floor space. It is vertically laid out to make the footprint modest. A nylon-roller feed structure pulls hides in smoothly and keeps them flat, decreasing measurement error. Operation is easy and capable of being operated by one person with optional print, label or bar code features.
Applications
Measuring leather area in tanneries, shoe factories, and bag/case factories.
Especially suited to shoe factories for re-checking leather sizes
Features
- Small footprint; can stand against a wall and be repositioned freely.
- A rotating nylon roller at the feed inlet draws the hide in and flattens curled leather before measurement for lower error.
- Expandable with a vertical printing stand, label printing, and barcode printing (optional).
- Single-operator use.
Technical Parameters
| Model | Effective Working Width | Overall Dimensions (L×W×H) |
| | 180 cm | 230×90×110 cm |
| | 200 cm | 250×90×110 cm |
Note:
| ||
The following accessories are included
-

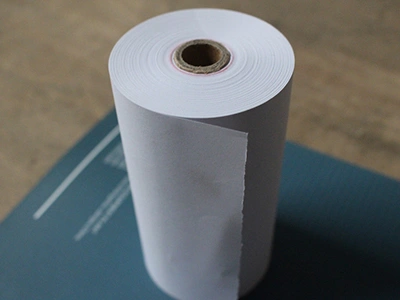

Printing Ribbon -

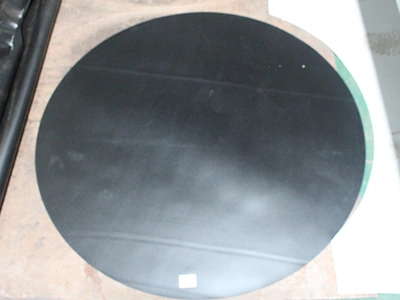

Calibration Plate -

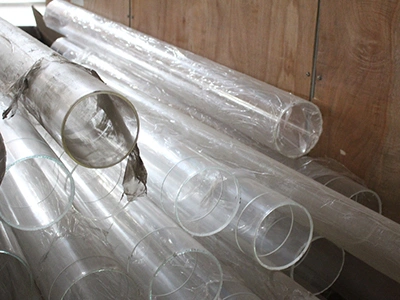

Feed Roller -

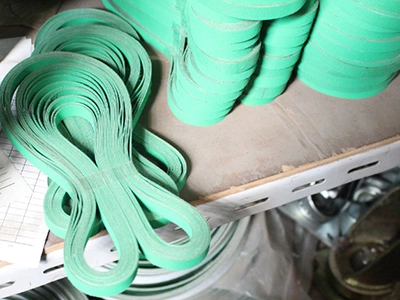

Conveyor Belt
