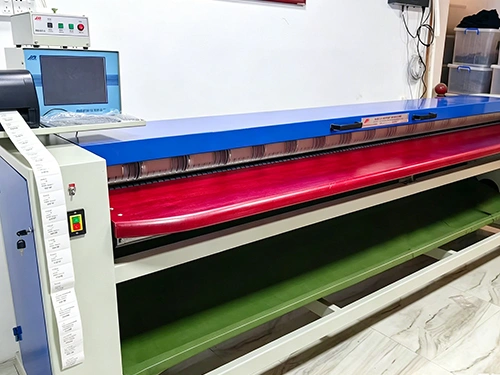

Roller Leather Measuring Machine for Wide Soft Hide
- Operating Speed: Stepless speed regulation, speed range 0–37 m/min
- Motor Power: 0.37–0.55 kW / 380 V
- Measurement Accuracy: Cumulative error of 10 consecutive measurements ≤ ±1%
- Size Calibration: Continuous calibration supported
Vertical roller leather measuring machine for furniture manufacturers, tanneries, shoe factories
The GLGLS roller leather measuring machine is a cost-effective, wide-format roller measurement equipment designed specifically for furniture leather and delicate, wrinkled hides. Its primary benefits are a space-saving vertical architecture and a pause and resume function that allows the operator to stop partway through to manually flatten the hide, reducing the area inaccuracies caused by wrinkles on large, wide furniture hides.
Applications
- Accurate area measurement of whole, large-size finished hides in tanneries and furniture factories, supporting measuring widths up to 340cm.
- Suited to tanneries, shoe factories, and leather goods producers measuring soft or wrinkled hides that horizontal leather measuring machines cannot read accurately; the vertical roller flattening ensures error-free results.
- Compact vertical design that stands against a wall, ideal for hide inspection and warehousing in furniture-factory storerooms.
Technical Parameters
| Model | Effective Working Width | Overall Dimensions (L×W×H) |
| | 180 cm | 213×70×115 cm |
| | 220 cm | 253×80×115 cm |
| | 240 cm | 273×80×115 cm |
| | 260 cm | 293×80×115 cm |
| | 280 cm | 313×80×115 cm |
| | 300 cm | 333×80×115 cm |
| | 320 cm | 353×80×115 cm |
| | 340 cm | 373×80×115 cm |
| Optional Features: Expandable functions including desktop printer stand, label printer, barcode printing, and data communication. | ||
| Note: We offer customizable configurations to suit your local facility. Please contact us to confirm all technical specifications before ordering. | ||
