Leather Measuring Machines
Electronic Leather Measuring Machine
Video
GLGWJ

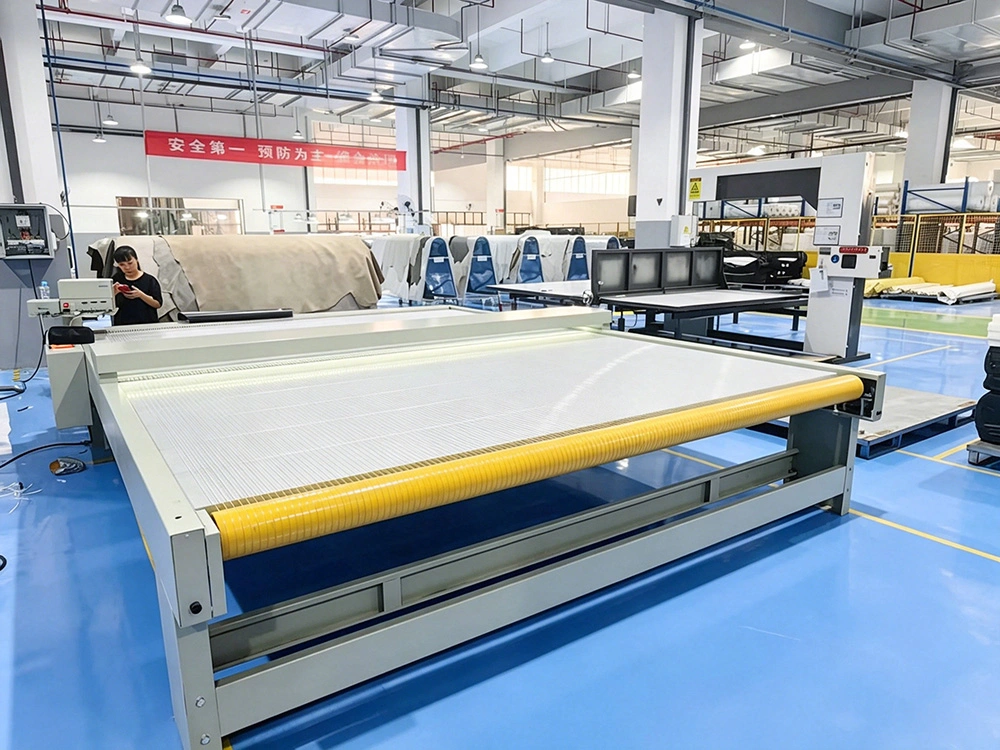

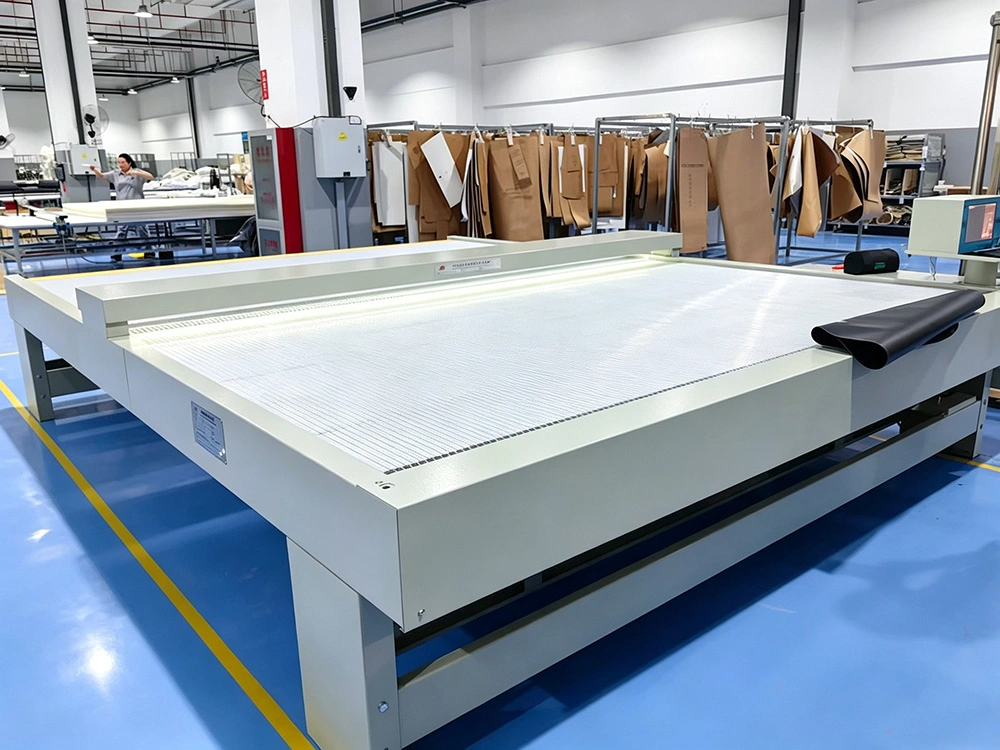

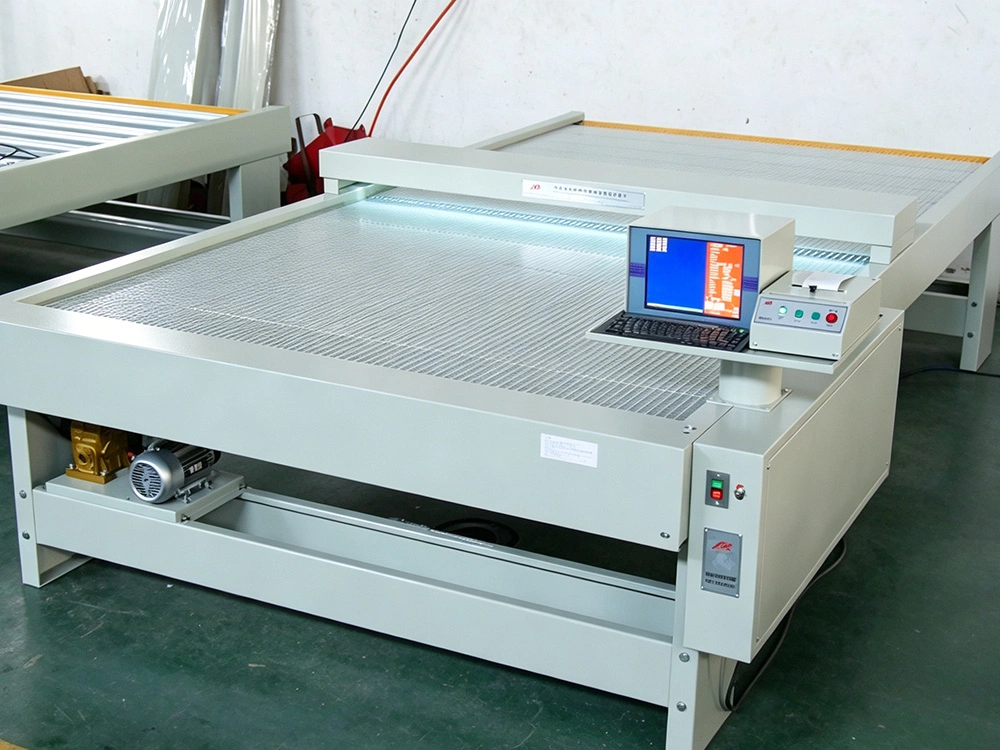

Electronic Leather Measuring Machine

  • Operating Speed: 27 m/min (Pigskin Processing Capacity: 1,200 pieces/h)
  • Motor Power: 0.37–0.55 kW / 380 V
  • Measurement Accuracy: Cumulative error of 10 consecutive measurements ≤ ±1%
  • Size Calibration: Continuous calibration supported

Fengmi's GLGWJ series electronic leather measuring machine is a cost-effective, fully-automatic measuring system designed for operations that do not necessitate markings that are directly inscribed on the hide. It simplifies packaging and warehousing by simultaneously printing a running docket and generating a carton docket. Its intelligent hide-selection function enables the establishment of a size range, with hides that fall outside of this range being excluded from the docket. Consequently, quality-control sifting occurs during the measurement process.

Technical Parameters
Model Effective Working Width Overall Dimensions (L × W × H)
GLGWJ-180 180 cm 380 × 190 × 90 cm
GLGWJ-220 220 cm 400 × 230 × 90 cm
GLGWJ-240 240 cm 400 × 250 × 90 cm
GLGWJ-260 260 cm 430 × 270 × 90 cm
GLGWJ-280 280 cm 430 × 290 × 90 cm
GLGWJ-300 300 cm 450 × 310 × 90 cm
GLGWJ-320 320 cm 450 × 330 × 90 cm
GLGWJ-340 340 cm 450 × 350 × 90 cm
Optional Features: Expandable functions including label printing, barcode printing, defect deduction (allowance marking), and PC communication.
Note: We offer customizable configurations to suit your local facility. Please contact us to confirm all technical specifications before ordering.
Founded in 2002, Fengmi specializes in leather processing machinery manufacturing. We provide reliable equipment, customized configurations and technical support for global tanneries. From voltage adaptation to customer-specific requirements, our solutions are designed to meet different market standards and production needs.
