GLGWP

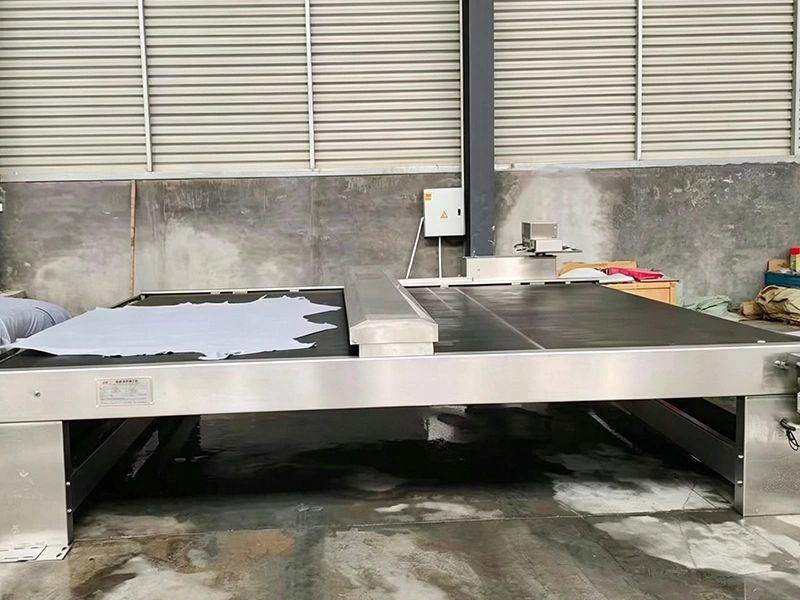

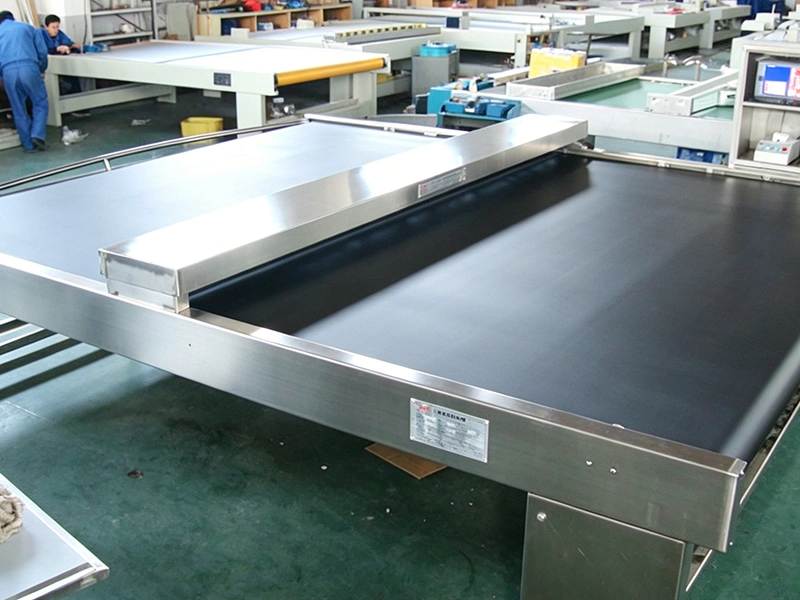

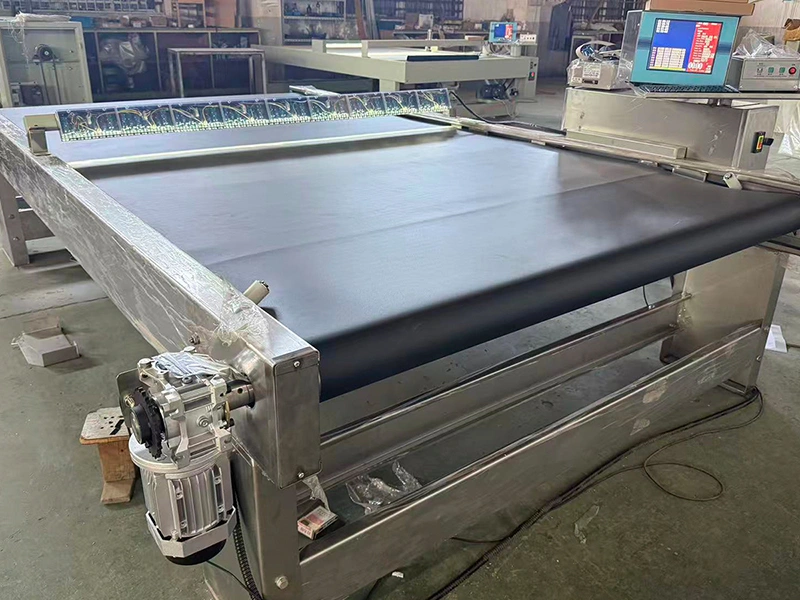

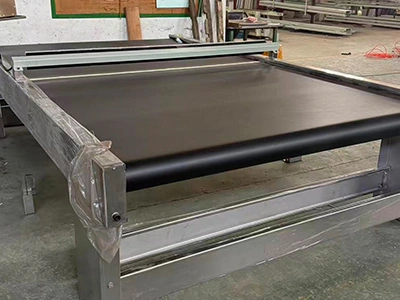

Wet Blue Leather Measuring Machine
- Operating Speed: Stepless speed regulation, speed range 0–37 m/min
- Motor Power: 0.37–0.55 kW / 380 V
- Measurement Accuracy: Cumulative error of 10 consecutive measurements ≤ ±1%
- Size Calibration: Continuous calibration supported
Wet-blue and wet-white leather are the results of the tanning process of animal hides, which may involve the use of chromium, vegetable, or mineral tanning agents. It is imperative to accurately measure wet-blue hides in order to evaluate the tanning yield. Producers can estimate output and modify the process when waste exceeds a certain threshold by comparing the weight and dimensions of the hides before and after tanning.
Fengmi's GLGWP series leather measuring machine is specifically engineered for wet-blue and wet-white leather, ensuring that the dimensions, thickness, and weight of the hide are accurately detected to reduce material loss and enhance the area yield in production.
Designed specifically for tanneries to accurately measure wet-blue hides that have not been sammed (squeezed).
The GLGWP flat-bed wet-blue measuring machine is not suitable for sammed (squeezed) wet-blue hides, as this may produce undersized readings.
-
A unique digital reflective sampling technology paired with a special conveyor solves the inaccuracy caused by glare and sticking on wet hide surfaces.
-

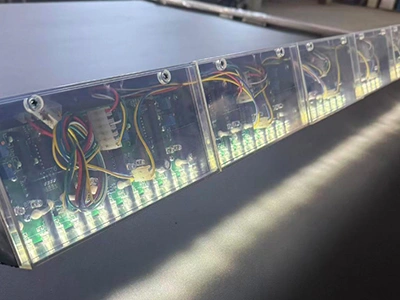

The scanning module uses a fully enclosed construction that prevents chemical contamination from wet-blue hides and protects scanning accuracy.
-
The body and control cabinet are built in 304 stainless steel to handle wet-blue measurement and withstand the humid tannery environment.
-
Wet-blue hide sorting function: up to 8 groups.
| Model | Effective Working Width | Overall Dimensions (L×W×H) |
| | 180 cm | 350×190×90 cm |
| | 220 cm | 350×230×90 cm |
| | 240 cm | 360×250×90 cm |
| | 260 cm | 380×270×90 cm |
| | 280 cm | 380×290×90 cm |
| | 300 cm | 400×310×90 cm |
| | 320 cm | 400×330×90 cm |
| Note: We offer customizable configurations to suit your local facility. Please contact us to confirm all technical specifications before ordering. | ||
The following accessories are included
-

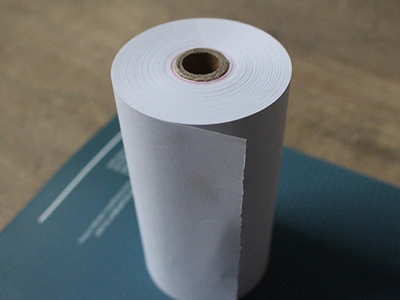

Printing Paper Roll -

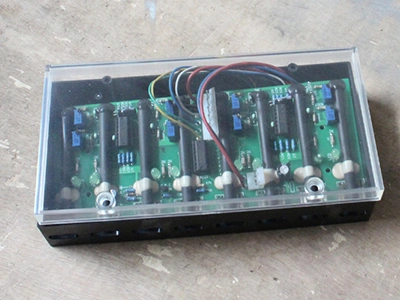

Scanning Module for Wet Blue Leather Measuring Machine -

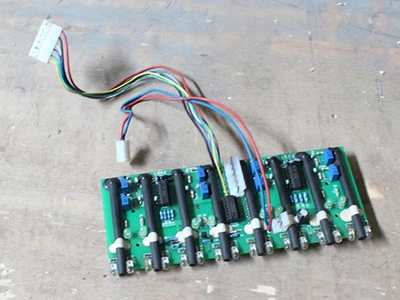

Scanning Plate for Wet Blue Leather Measuring Machine -

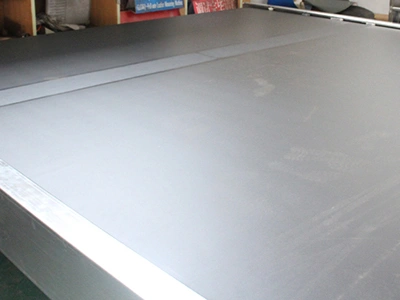

Leather Conveying Plate for Wet Blue Leather Measuring Machine -

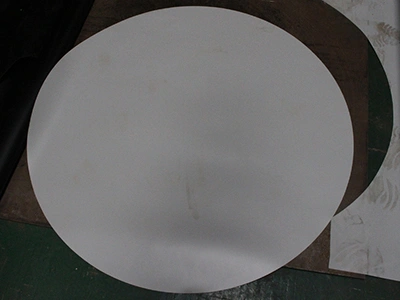

Calibration Plate for Wet Blue Leather Measuring Machine
