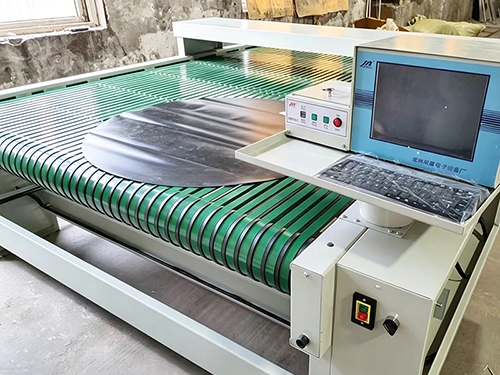

GLGWPD
Leather Measurement System
Electronic measuring machine for raw hide, wet blue and finished leather
- Operating Speed: Stepless speed regulation, speed range 0–37 m/min
- Motor Power: 0.37–0.55 kW / 380 V
- Measurement Accuracy: Cumulative error of 10 consecutive measurements ≤ ±1%
- Size Calibration: Continuous calibration supported
Electronic measuring machine for raw hide, wet blue, and finished leather
The GLGWPD leather measurement system is an "all-rounder" stainless steel measuring equipment engineered for the complexities of a tannery. Its 3cm industrial narrow-belt conveyor eliminates slippage and obstruction issues while measuring raw, salted, and un-dehaired hides. The machine body is made of SUS304 stainless steel, the scanning module is totally sealed with polymer centrifugal tubing, and the rollers are protected by an enclosed nylon divider, allowing it to properly measure highly corrosive sammed wet-blue hides as well as polished leather. It is ideal for manufacturers with limited line space who want a single leather measuring machine for raw hide, sammed wet blue and standard finished leather.
Technical Parameters
| Model | Effective Working Width | Overall Dimensions (L×W×H) |
| | 180 cm | 380×190×90 cm |
| | 220 cm | 380×230×90 cm |
| | 240 cm | 380×250×90 cm |
| | 260 cm | 390×270×90 cm |
| | 280 cm | 400×310×90 cm |
| | 300 cm | 400×310×90 cm |
| | 320 cm | 400×330×90 cm |
| Optional Features: Expandable functions including label printing, barcode printing, and direct-to-leather printing. Optional cost-effective steel plate machine body, specifically designed for dry leather measurement. | ||
| Note: We offer customizable configurations to suit your local facility. Please contact us to confirm all technical specifications before ordering. | ||
