GLGWQ

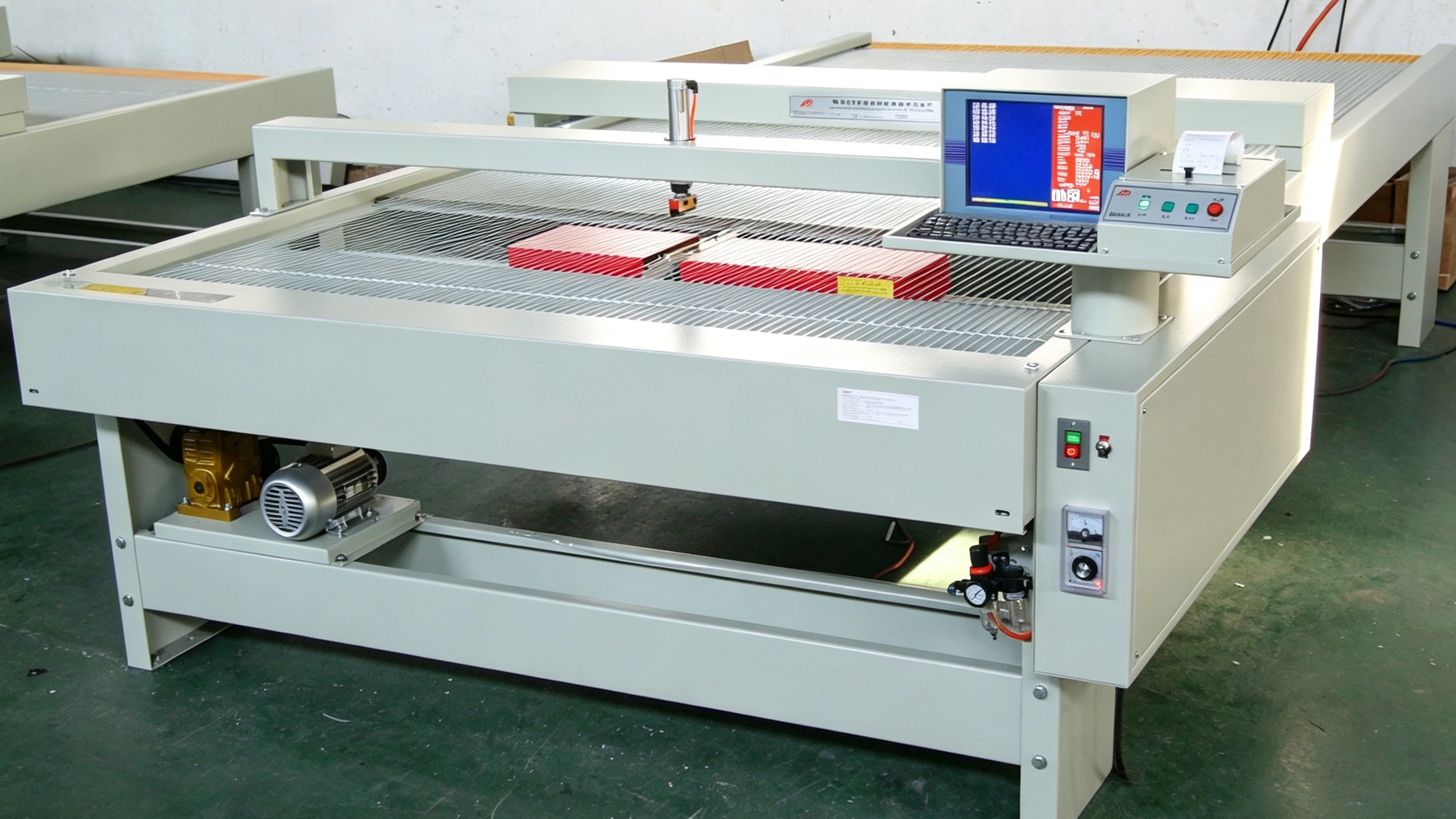

Finished Leather Measuring Machine
- Operating Speed: 27 m/min (Pigskin Processing Capacity: 1,200 pieces/h)
- Motor Power: 0.37–0.55 kW / 380 V
- Measurement Accuracy: Cumulative error of 10 consecutive measurements ≤ ±1%
- Size Calibration: Continuous calibration supported

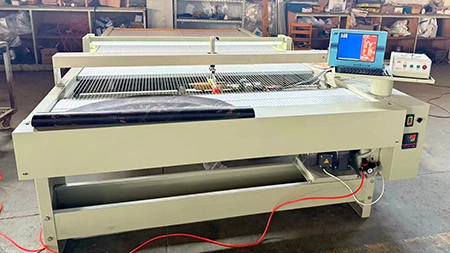

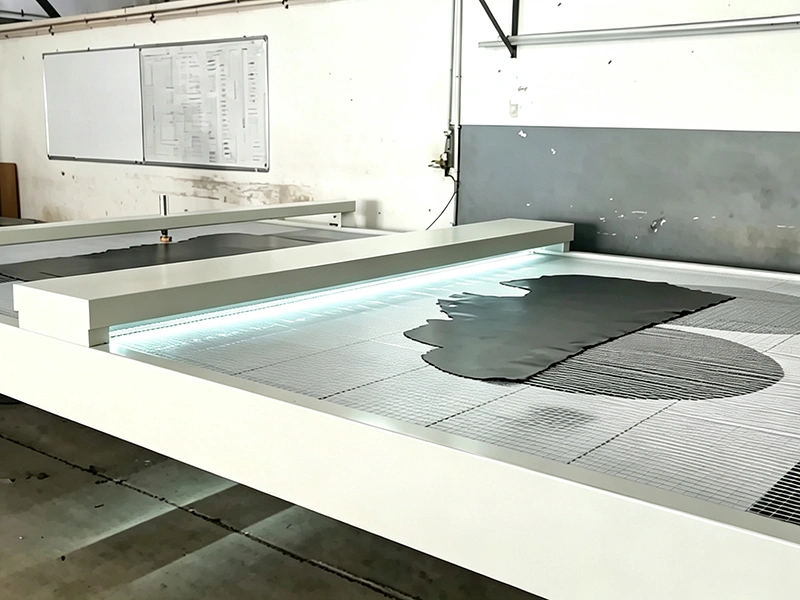

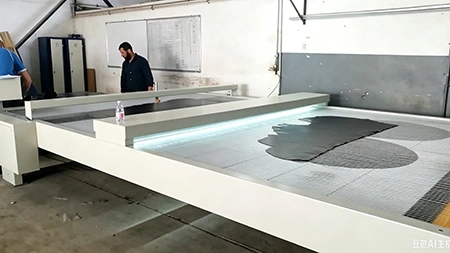

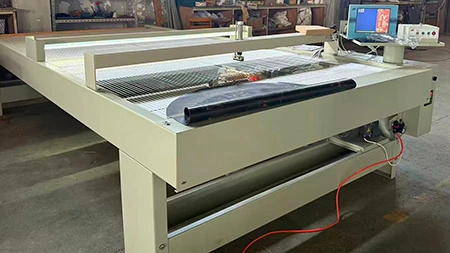

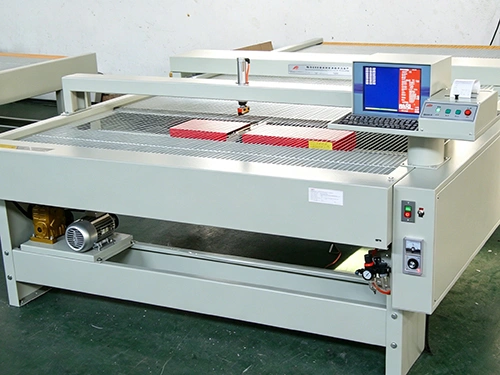

The GLGWQ electronic measuring machine can rapidly and accurately measure the area of finished leather and print the size or logo on the surface of the hide by heat transfer printing, completing the measurement and marking in one pass. The high speed industrial control system ensures the steady and efficient operation for continuous work, and the leather measurement machine can automatically identify the hides from different locations to ensure accurate measurement and avoid errors in printing.

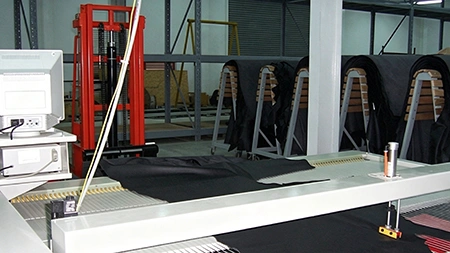

Measuring finished-leather area in tanneries, shoe factories, bag/case factories, and furniture factories
-
Fully-automatic on-hide printing driven by high-speed CNC motors for fast, efficient throughput.
-
Fengmi's in-house single-chip industrial control technology keeps sizing stable and reliable in the dusty, humid, voltage-unstable conditions typical of leather plants ensuring long-term stable operation.
-

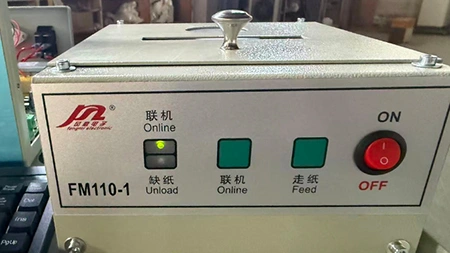

Prints carton dockets alongside standard dockets.
-
Intelligent hide-selection: set a size range and hides outside it are neither measured nor counted, speeding up QC sorting.
-

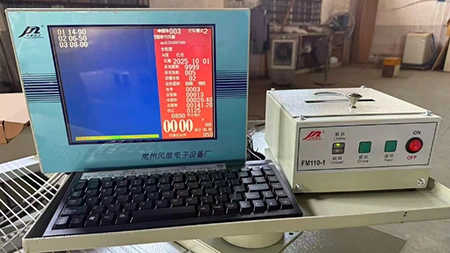

English PC keyboard input, English on-screen interface, and English dual-docket printing.
-
Expandable with label printing, barcode printing, allowance deduction, and PC communication (optional).
| Model | Effective Working Width | Overall Dimensions (L × W × H) |
| | 180 cm | 380 × 190 × 90 cm |
| | 220 cm | 400 × 230 × 90 cm |
| | 240 cm | 400 × 250 × 90 cm |
| | 260 cm | 430 × 270 × 90 cm |
| | 280 cm | 430 × 290 × 90 cm |
| | 300 cm | 450 × 310 × 90 cm |
| | 320 cm | 450 × 330 × 90 cm |
| | 340 cm | 450 × 350 × 90 cm |
| Note: We offer customizable configurations to suit your local facility. Please contact us to confirm all technical specifications before ordering. | ||
The following accessories for the leather measuring machine are included
-

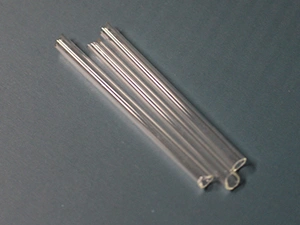

Glass Tube -

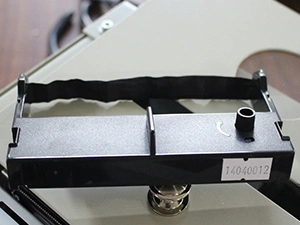

Printer Ribbon -

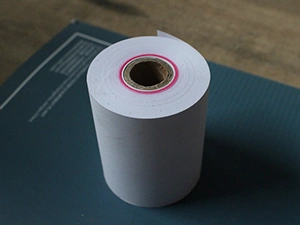

Print Paper Roll -

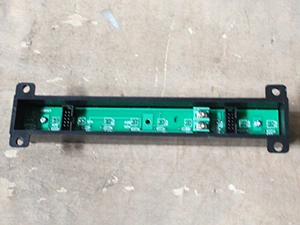

Light-emitting panel -

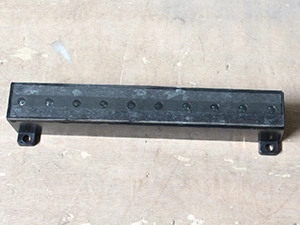

Light-emitting Module -

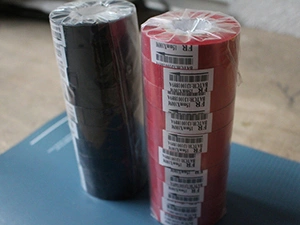

Thermal Transfer Ribbon -

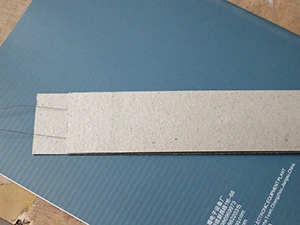

Heating pad -

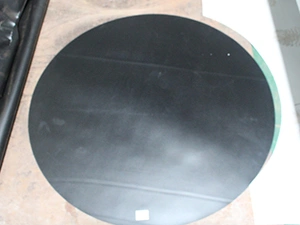

Calibration Plate
(for Stretching-type Leather Measuring Machine) -

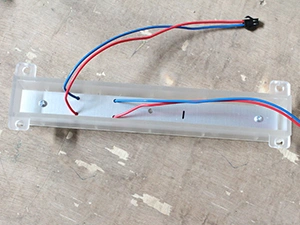

Scanning Module -
Scanning Board -

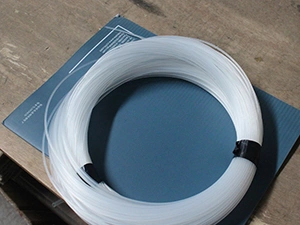

Conveying Nylon Monofilament -

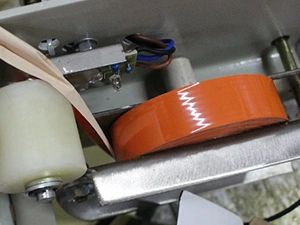

Nylon Roller
(for Belt Conveying)
